Completely redesigned, our new series of enclosures are here!

IWB-1 x (Large in-wall box) & IWB-2 x (Small In-wall box)
  • New Features
  • UL & CUL Listed
  • Conduit punch-out’s
  • Pre-construction mounting slots
  • New 1.7″ diameter grommet
  • Easier to remove punch-out’s
  • Pre-Drill locations
Details
  • UL & CUL listed
  • Punch-out’s for direct wire entry with updated grommet
  • Punch-out’s for 3/4″, 1.00″, 1.25″ & 1.50″ conduits
  • Pre-construction mounting slots
  • Pre-drill holes
  • Easier to remove knockouts
  • Pre-construction or retrofit installation
  • Accommodates up to 3/4” thick wall material
  • Heavy duty “Dog Ears” install from the inside for easy installation…plus they don’t fall into the wall
  • Removable trim ring
  • Knockouts to accommodate direct mounting of wall plates to the outer edge
  • Knockouts for both metal and plastic high-volt boxes
  • Welded steel construction with heavy duty powdercoated finish
  • Easy retrofit installation into any 2×4 wall. Fitting into 10” on-center (IWB-2), 12″on-center Stud bays (IWB-1), the IWB is as simple as mounting an in-wall speaker
  • Don’t worry about existing wires in the wall. After mounting you will have over 1/2” of clearance behind the enclosure for existing wires. or running new wires
  • Connect and test your system, PRIOR to hanging the display. Save hours of labor making sure everything is correct the first time.
  • Patents Pending
Specifications:
IWB-1
  • Weight rating: 10lbs with dog ears only, 25lbs when stud mounted.
  • Cut-Out Dimensions: 10.375” x 14.375”
  • Overall Dimensions: 15.76” x 11.76” x 3.51”
  • 5.5Lbs. Product Weight
  • 6.0 Lbs. Shipping Weight
IWB-2
  • Weight rating: 10lbs with dog ears only, 25lbs when stud mounted.
  • Cut-Out Dimensions: 10.375” x 8.39”
  • Overall Dimensions: 9.78” x 11.76” x 3.51”
  • 3.5Lbs. Product Weight
  • 4.0 Lbs. Shipping Weight
Construction:
  • 1.10mm steel, powder coated
  • 1.5mm thick outer flange
  • Butt welded and smoothed joints
WHAT’S IN THE BOX?
  • IWB Enclosure
  • Dog Ears
  • 5mm Dog Ear Screws
  • Self tap screws for mounting plates
  • Trim ring screws
  • Self tap screws for rear panel
  • Wire Grommet
  • Cut Out Template
Related Items
  • CVR-2 Magnetic Cover
  • CMK-1 Component Mounting Kit
  • IWB-1x Larger Enclosure

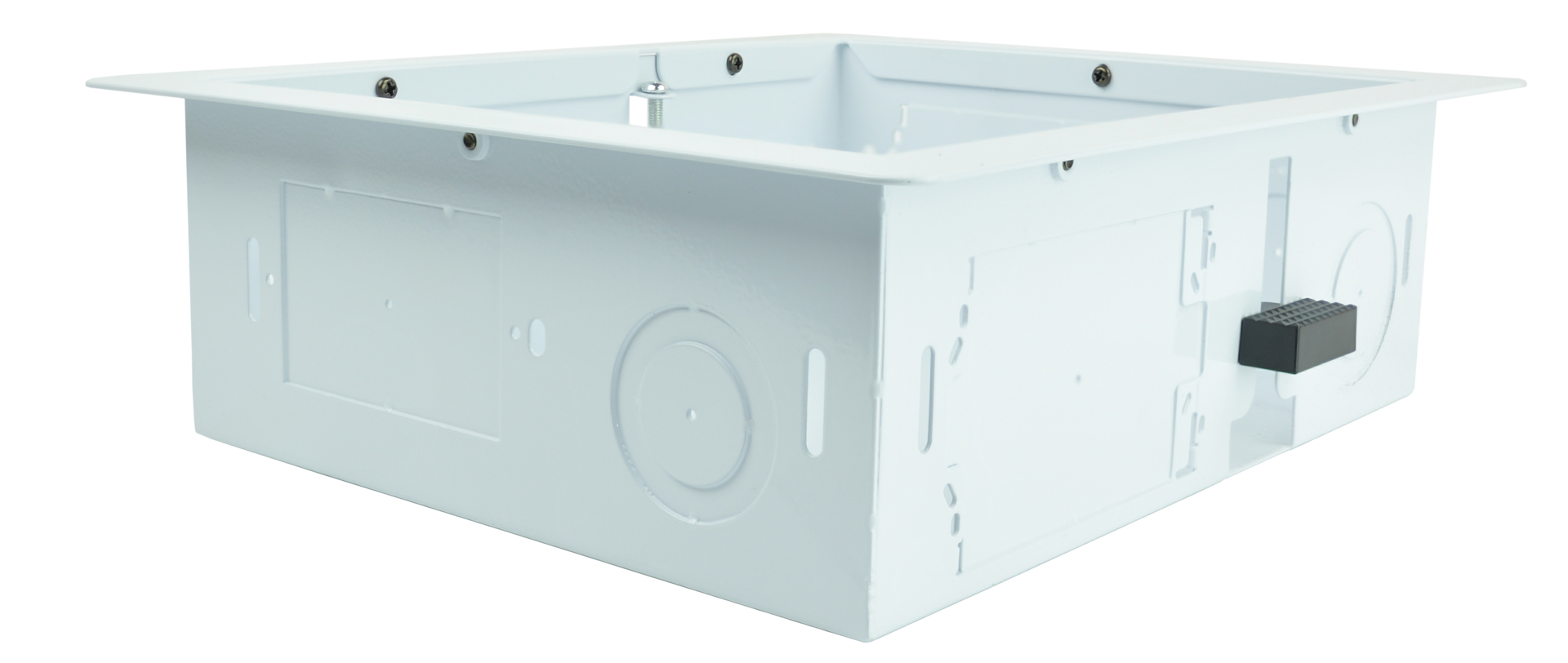

IWB-2 xb (Small enclosure, black)

IWB-x series Enclosures

The perfect solution for mounting all of your components behind the display.

With multiple punch-out’s for conduit, power boxes, wall plates, or direct wiring, this enclosure is the installers best friend.

With the ability to be installed retrofit or pre-construction, and UL approval, it can be installed in almost any situation.

Available Models:

– Larger enclosure Black (IWB-1xb) or White (IWB-1xw)

– Smaller enclosure Black (IWB-2xb) or White (IWB-2xw)


IWB-1 xw (Large enclosure, white)

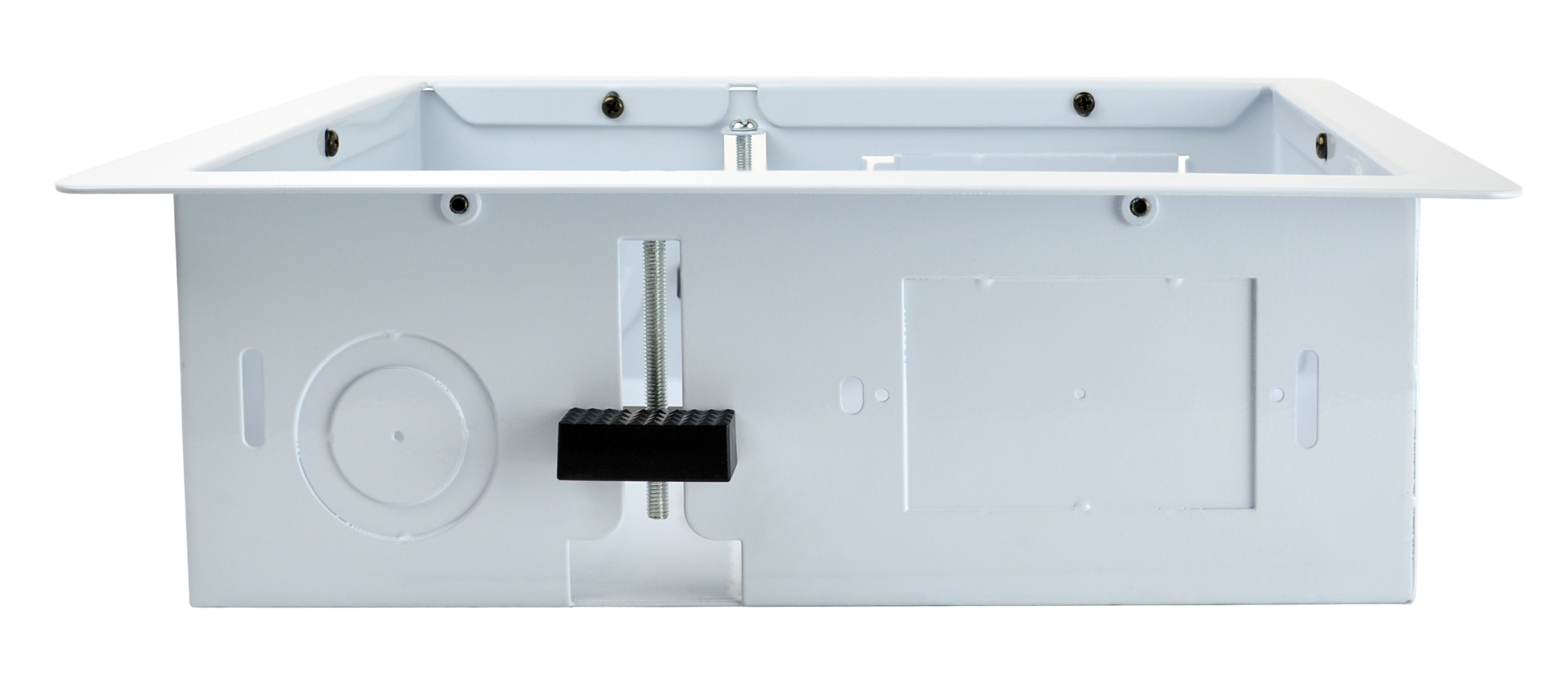

Power Punch-out’s

Each side of the enclosure features easy to remove punch-out’s.

One long side, and one short side have a punchout for an high volt electric box.  Using metal power boxes, simply remove the first punchout.  For plastic power boxes, easily remove the second section.

With our enclosures you can use METAL or PLASTIC power boxes.

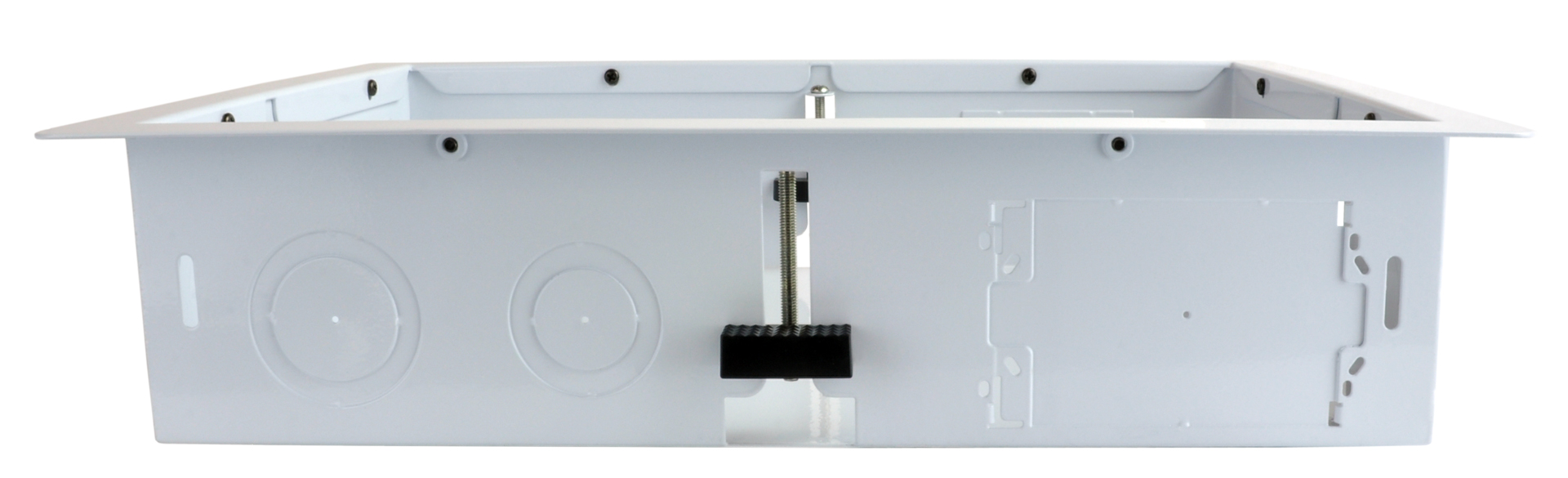

Wall Plate and Conduit punch-outs

The other two sides, long and short, feature punch-outs for direct mounting of wall plates.

Also, there are punch-outs for 3/4″ , 1.0″, 1.25″ & 1.50″conduits!

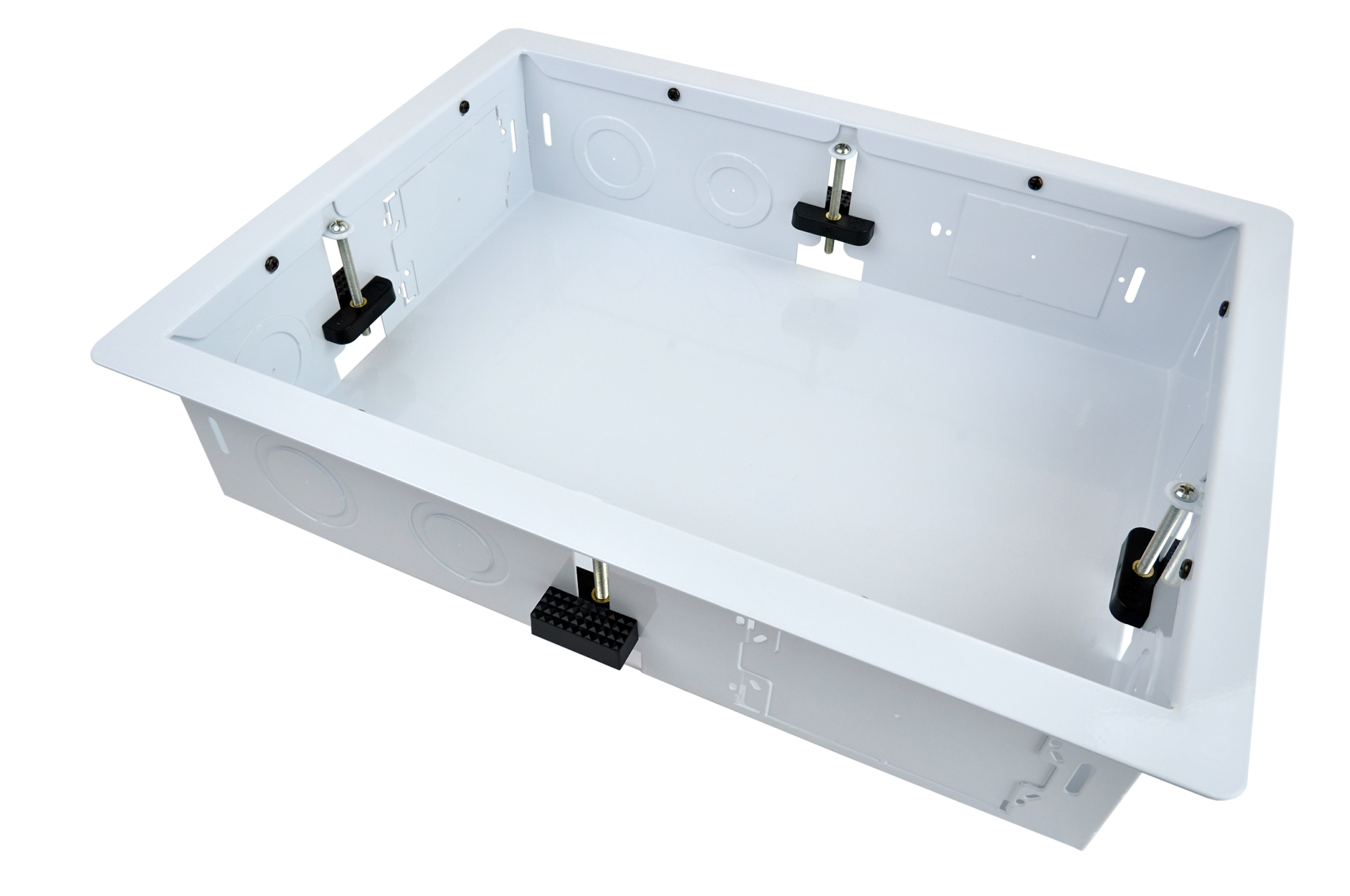

Retrofit or Pre-Construction

Our enclosures feature a removable trim ring, so they can be mounted Pre-Construction or retrofit…no pre-construction kit needed.

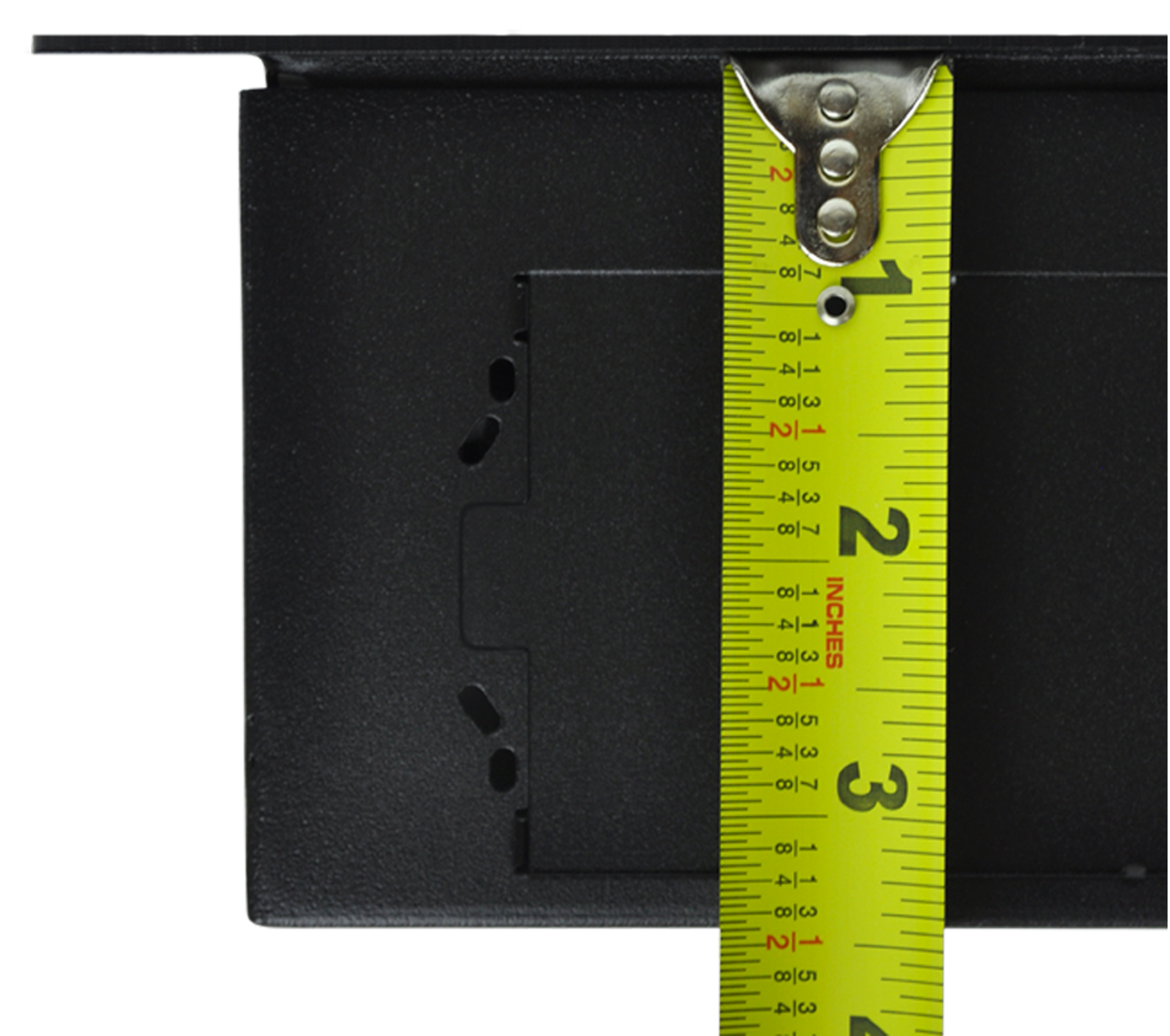

Thick wallboard is ok

Our enclosures will allow for 3/4″ drywall, great for jobs with 5/8″ drywall and a heavy finish.

Our removable trim ring, coupled with our mounting slots, allow you to adjust the enclosure in and out for the perfect fit.

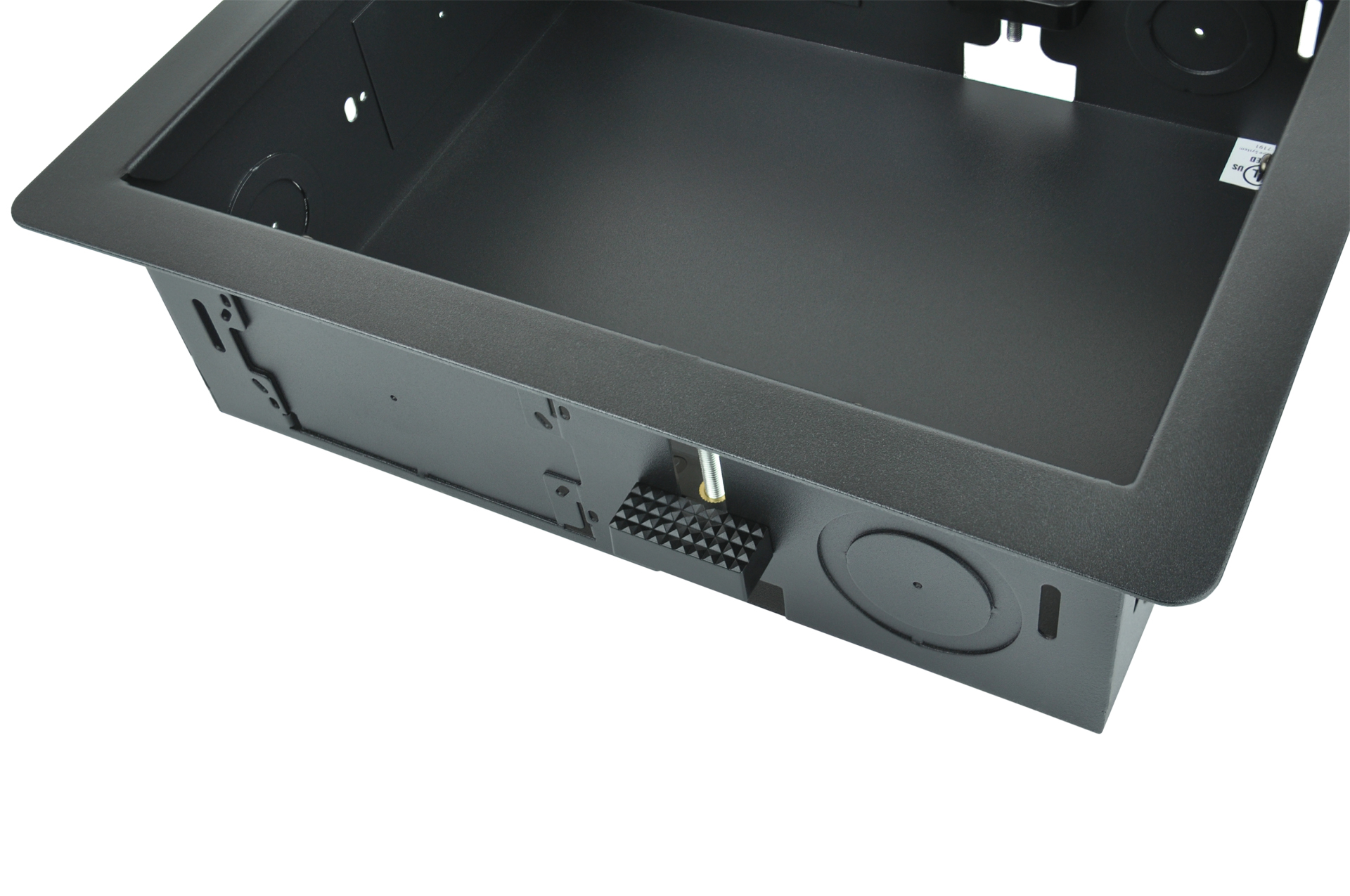

Heavy duty Dog Ears

Our doge ears install from the inside and don’t fall into the wall cavity. They are incredibly strong and can support the enclosure by themselves, or add additional support when stud mounted.

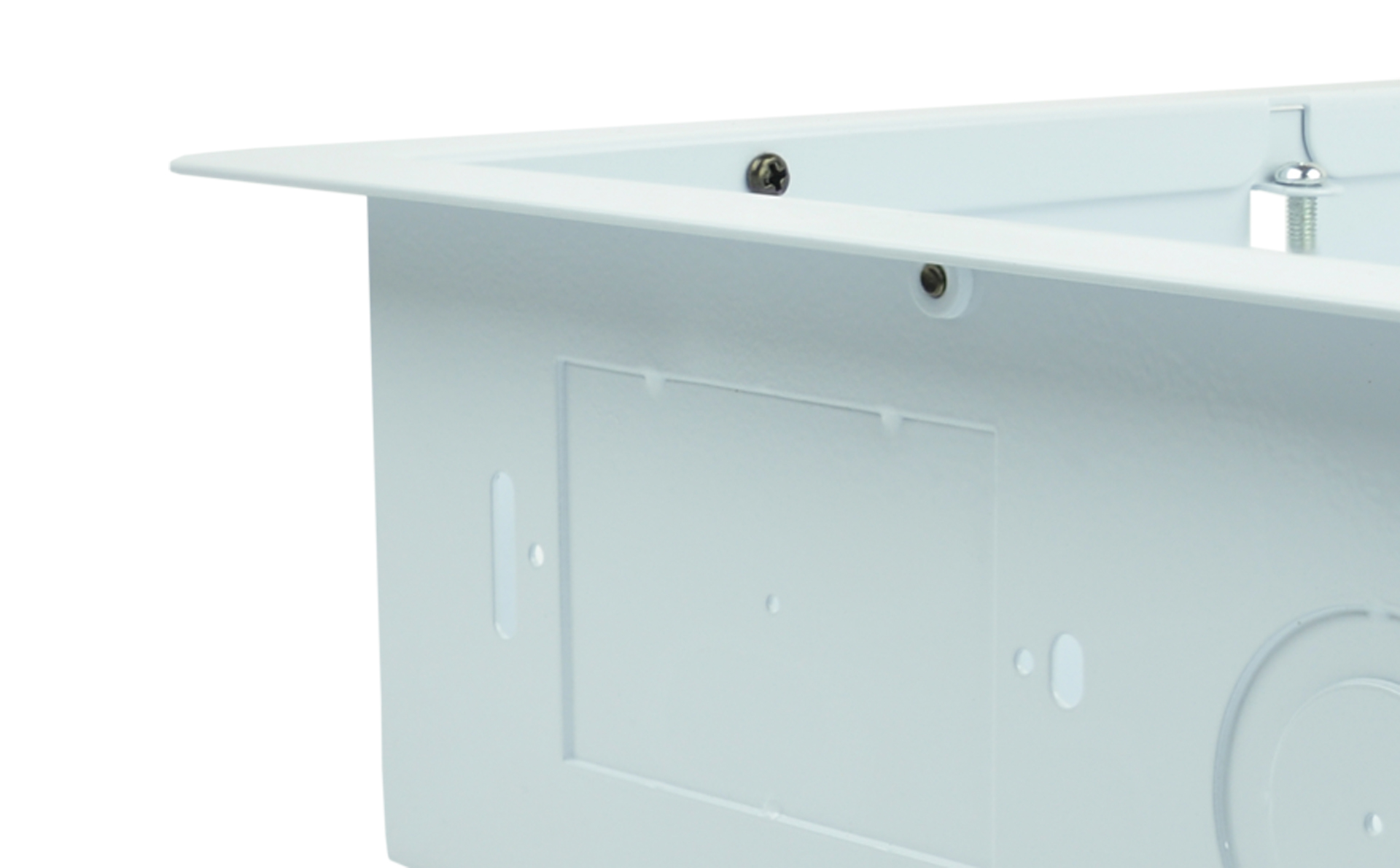

Thin edge

Plastic enclosures have a thick edge, this keeps the TV mount from sitting on the wall.

Our steel edge is only 1.5mm (0.06″), yet it is extremely strong.

Mounting Slots

The “x” series of enclosures feature 2 mounting slots on each side, used to mount the enclosure during pre-construction.  After wallboard installation, loosen the screws and easily slide the enclosure so that it is flush with the surface.

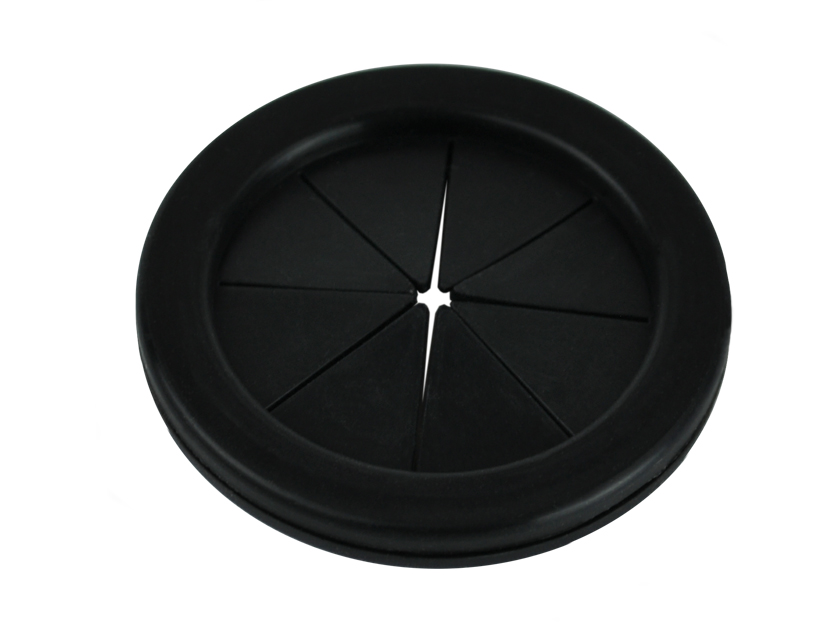

Grommet

Our new grommet allows you to run wires directly into the enclosure.

It installs easily into either of the two 1.9″ conduit openings and gives you a 1.7″ protected diameter hole.

One is included with each enclosure.
