Three versions of the S-Mount are available

DOES YOUR COUNTER LOOK LIKE THIS?

Too many devices, not enough outlets. uncharged tablets, mixed brands and different chargers

we have a solution, the S-Mount!

Available in three versions…S-Mount (Non Charging), S-Mount-POE (Power Over Ethernet), or S-Mount-P (120v/240v) High Powered.

WALL MOUNT AND CHARGE AT THE SAME TIME

With the S-Mount-P, you can store, charge, and use your tablet without taking up counter space.

Works with any flat backed tablet using Apple 8-Pin, Micro USB or Micro USB-C.

What is an S-Mount?

It is a super slim magnet mount for your phone or tablet, which can easily be installed on any flat surface.

Once installed you can quickly attach and remove your device, then slip it into your favorite carrying case.

The mount is only 1/4″ thick and does not require a special case, so the tablet looks like it is attached to the wall.

Designed to look like a wall plate, it blends with the homes decor.

complimentary Design

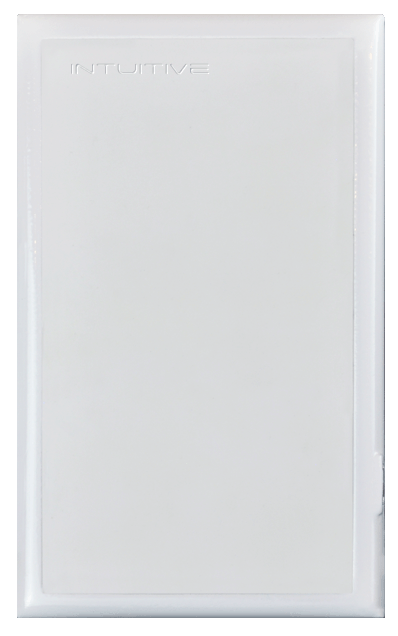

The S-Mount series is designed to blend with the environment, looking like a blank wall plate.

A rubber piece covers the face, hiding the screws and making it easy to clean.

Tablet wall mount

Tablet adapter

A removable thin metal plate is attached to the rear of the tablet, this is what allows it to stick to the S-mount.

The adapter is attached using 3M™ tape, and can be removed if necessary.

You can continue to use your current carrying case.

How does it work?

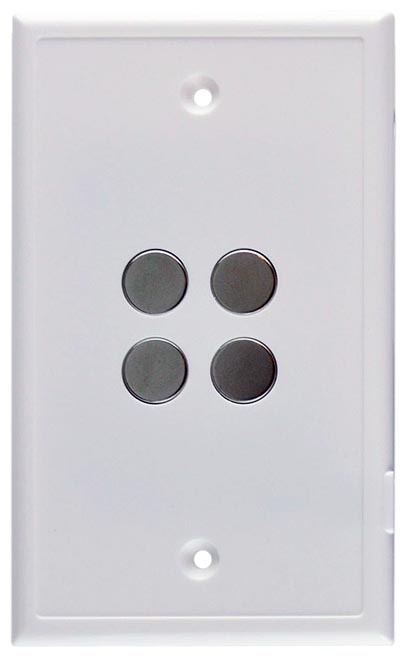

There are 4 super strong Neodymium rare earth magnets that hide behind the rubber face, these are attracted to the metal plate that is on the rear of your device.

The magnets will NOT harm your device in any way.

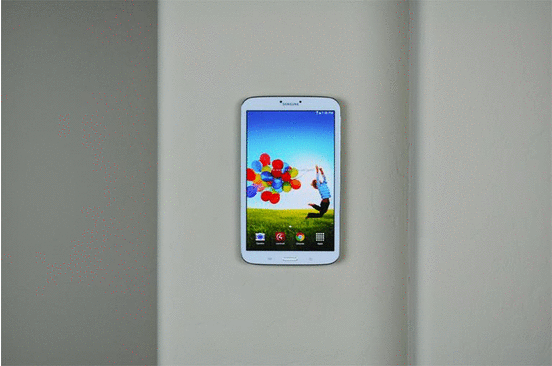

Rotate in any direction

Once installed the tablet can easily be rotated in any direction.

Assembled Here, and proud of it!

All of our S-mounts are assembled in Arizona by hand. We take pride in every product we send out, and it shows.

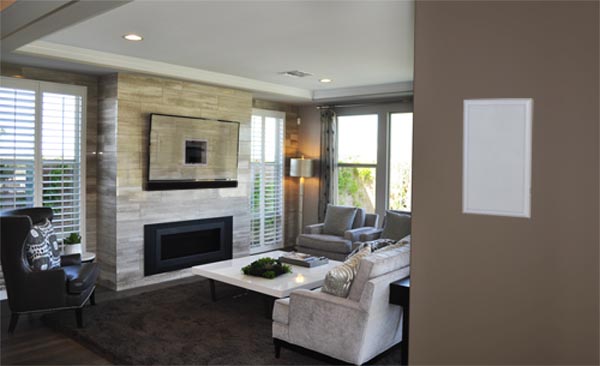

The finished installation

At only 1/4″ thick, the S-mount keeps the tablet close to the wall, appearing to float on the surface.

Cases

Use the case you want

Unlike most tablet mounts on the market, the S-Mount does not require a special case for your tablet.

The pros give feedback

We brought in a couple of custom installation specialists to give their opinions on the S-Mount…here is what they think.

Terry Kohler – Cinemagic

Izaak Govert – Desert Valley Audio Video



S-Mount

 (Not-powered)



The S-Mount is a great way to easily add a touchpanel to almost any location.

It allows for “peel and stick” installation on surfaces that you don’t want to cut into such as granite and mirrors. For walls, stucco, wood and other surfaces it can be mounted using the included hardware.

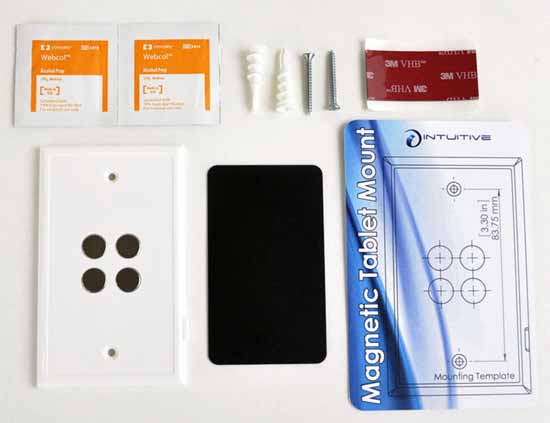

What’s Included?

Everything that you need to add one non-powered touch panel location.

  • S-Mount plate
  • S-Mount tablet adapter
  • Mounting template
  • Alcohol wipes
  • Drywall anchors
  • Mounting screws
  • 3M Double sided tape


How can I get one?

Simple, you can buy one from our online store, Just click here.

Can I install it?

For sure!

The installation can be done in just a couple of minutes

On granite, mirrors and other hard surfaces, it is a peel and stick installation.
On drywall, wood and other rough surfaces, you will only need a screwdriver.

We asked a friend, not an actress, to install the S-Mount on her granite back splash. She has never installed one before, and is not a contractor.

Not shown in the video was her adding the rubber face, which took about a minute.

Here are the instructions: S-Mount Instructions

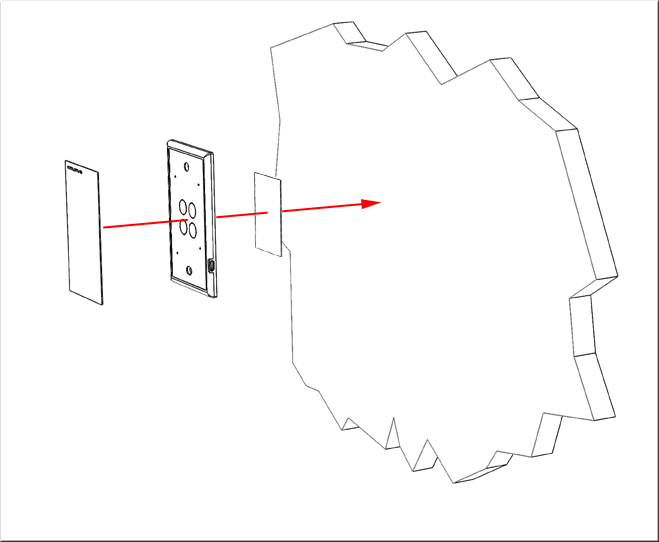

Attaching to a mirror, granite or other surface

Wipe the surface and the rear of the S-Mount with the included alcohol wipe, apply 3M™ VHB tape, and stick to the surface. Attach the rubber face. Attach the adapter to the rear of the tablet.  Installation time about 2-5 minutes.

Tools needed:  None

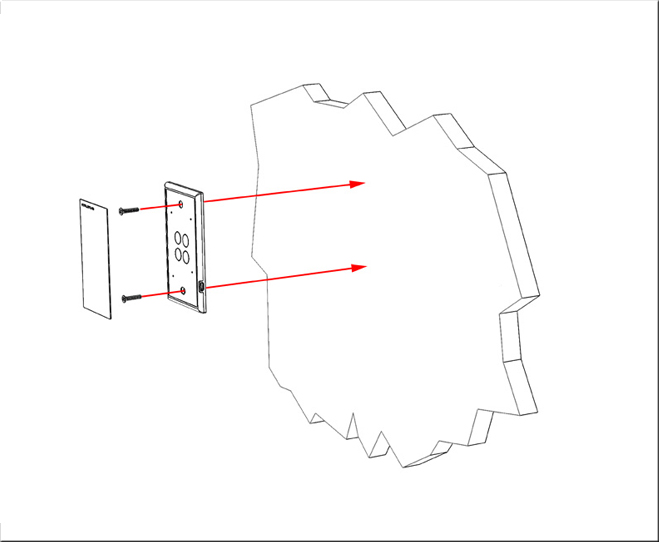

Attaching to Drywall

Use the included template to mark the mounting locations.  Using a philips head screwdriver, screw the drywall anchors into place.  Mount the S-Mount plate using the supplied screws.  Attach the rubber face. Attach the adapter to the rear of the tablet.  Installation time about 5-10 minutes.

Tools needed: A Philips screwdriver



Construction

  • Color: Wall Plate = White, Adapter = Black
  • Dimensions: 2.75” (70mm) wide x 4.55” (115.5mm) Tall x 0.25”(6.35mm) Deep
  • Construction:Plastic, Steel and Rubber
  • Magnets: Neodymium Rare Earth
  • Adhesive: 3M™


S-Mount-POE

Power Over Ethernet



The S-Mount POE is perfect for adding a charging tablet mount to any location you can get a wire.

The POE (Power Over Ethernet) version of the S-mount uses standard Cat5/Cat6 wire (network computer wire) to transfer power from one location to another, with no high-volt wiring needed. This is a great solution if you have an existing wire, don’t want to work with high volt wiring, or would like to use a single location for the power to all of the mounts.

How does it work?

The S-Mount-POE is designed to have the power supply located in a different part of the home from the mount.

There is a Cat5/Cat6 network cable that will need to be run from the tablet location to where you are hiding your power injector or POE network switch.  One end of the cable will be plugged into the rear of the tablet mount, and the other end into the injector/POE switch.  This supplies the power to the mount.

There is a micro USB located on the side of the S-Mount plate, this is where you will connect our adapter cable.  The other end of the cable plugs into your device.  At this point, you have run power from the remote location and are now charging your tablet.

Sounds complicated, but it is very easy.

POWER INJECTOR

( Sold separately from the S-Mount-POE )

This is the power source for the S-Mount-POE. Delivering 48v of power, it can be installed without an electrical licence, yet has enough power to fast charge your tablet.

One of these is needed per S-Mount-POE. You can also use an 48v af compliant POE switch as a substitute.

Click Here for more information

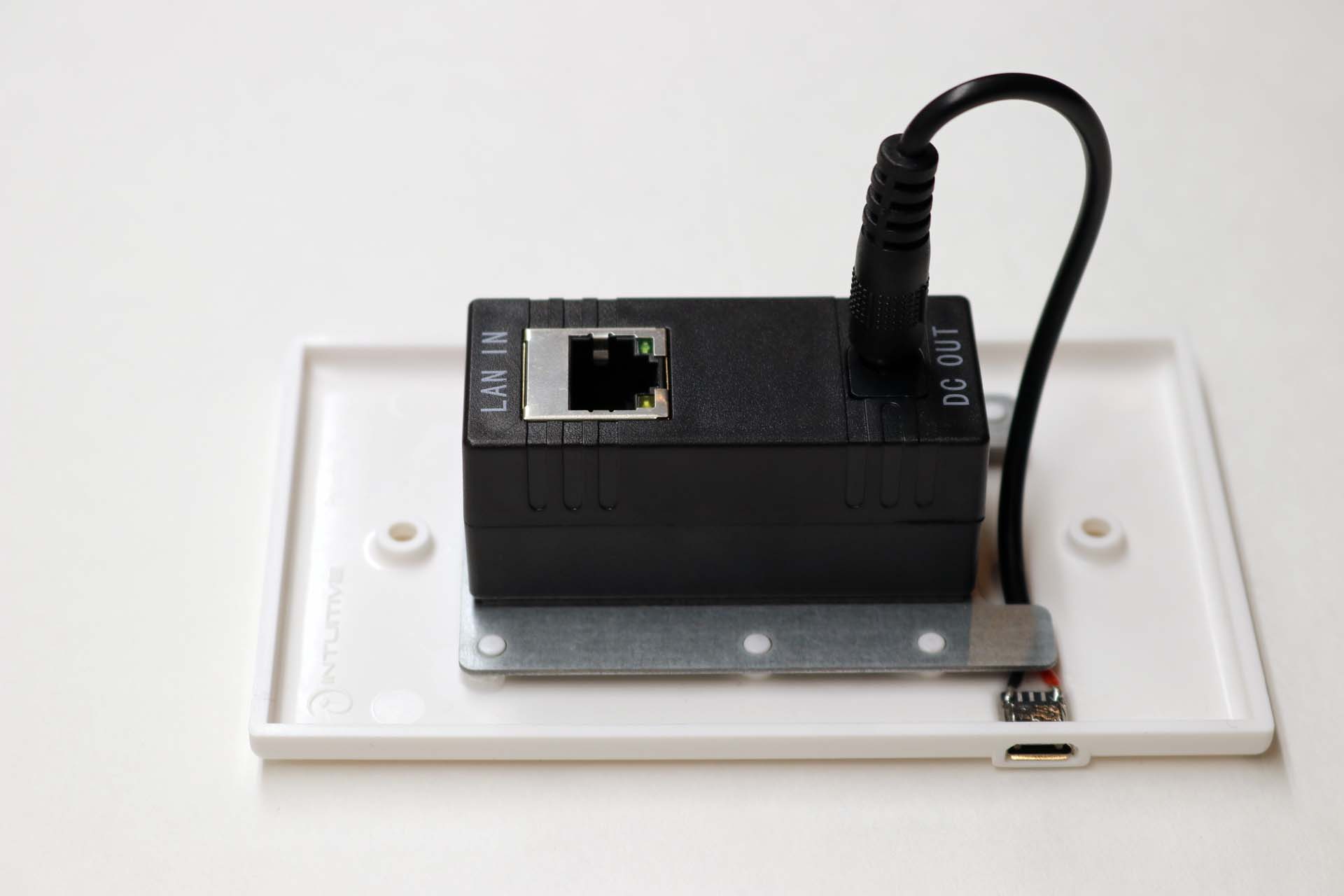

THE SPLITTER

On the rear of the S-Mount-POE is our custom splitter. This little box, measuring only 1″ x 1″ x 2″, is capable of fast charging your tablet with 2.1A output capability.

The Cat5/Cat6 will plug into the “LAN IN” port of the splitter.

CHARGING

We supply cables for Apple 8-Pin, Micro USB and Micro USB-C. One side of the cable plugs into the S-Mount-POE, the other side plugs into the tablet…it’s that easy.

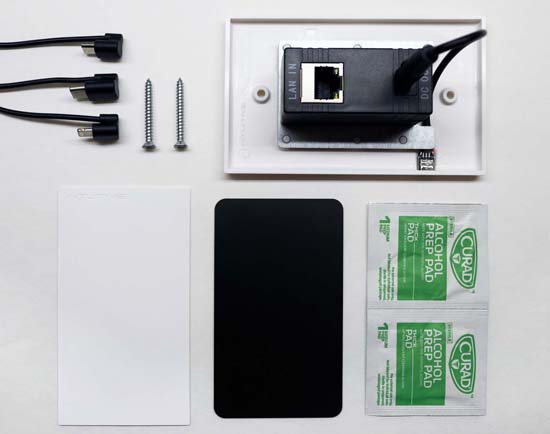

What’s Included?

Almost everything that you need to add one POE touch panel location.  You will need a POE network switch, or our POE injector.

  • S-Mount plate
  • S-Mount POE splitter
  • S-Mount tablet adapter
  • Instruction Manual
  • Cables:
    • S-Mount to Apple 8-pin
    • S-Mount to Micro USB
    • S-Mount to Micro USB-C
  • Alcohol wipes
  • Mounting screws

Can I install it?

That really depends on how handy you are.

You would need to be comfortable running a network wire in your home, and have the ability to connect a RJ45 (Network cable) End to your wire.  Also, cutting a drywall ring into your wall.

If you are fine with the above, the rest is easy!

Here is a video of the installation:

Here are the instructions: S-Mount-POE Manual

How can I get one?

Simple, you can buy one from our online store, Just click here.



S-Mount-HV

120v/240v Powered



How does it work?

The S-Mount-HV (High-Volt) is designed to connect to 120v/240v, then convert the power to safely charge your device.

An electrician would run a wire from an existing power source to the mount location, and install an electrical box.  They would then connect the high volt electrical to the converter located on the rear of the S-mount…this is what supplies the power to your tablet for charging.

There is a micro USB located on the side of the S-Mount plate, this is where you will connect our adapter cable. The other end of the cable plugs into your device. At this point, you have run power from the remote location and are now charging your tablet.

Sounds complicated, but it is very easy.

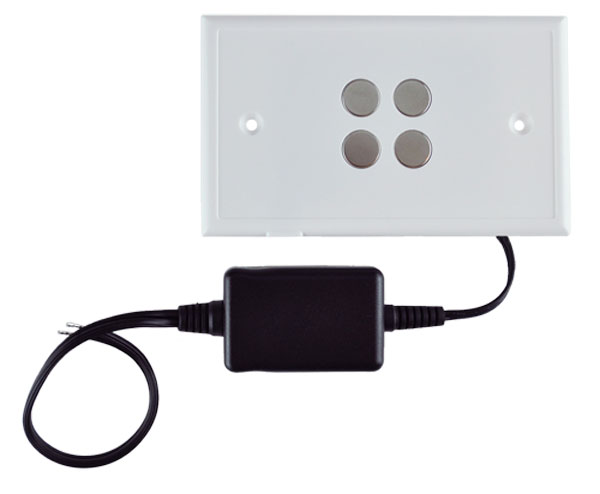

THE POWER SUPPLY

On the rear of the S-Mount-HV is our custom Power supply. This little box, measuring only 1″ x 1″ x 2″, is capable of fast charging your tablet with 2.0A output capability.

You attach your 120v/240v AC power, and it is converted to the 5v that you tablet needs.

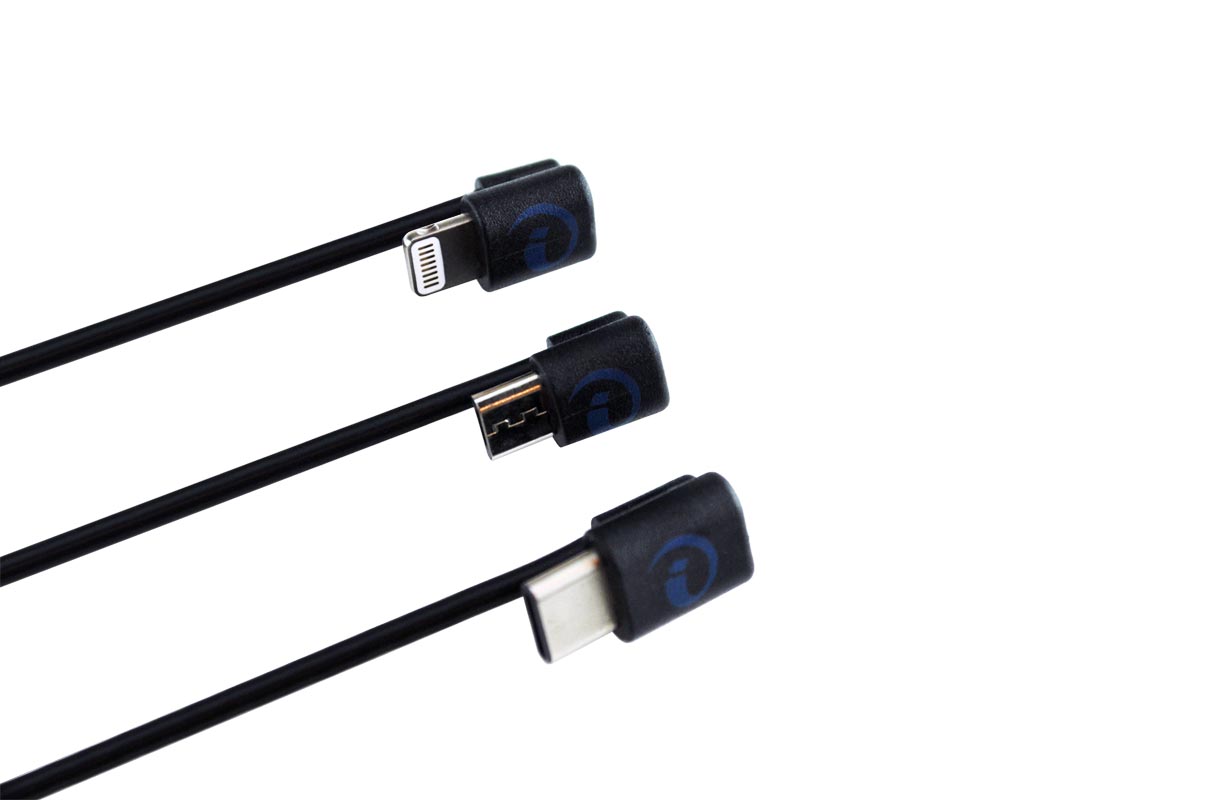

CHARGING

We supply cables for Apple 8-Pin, Micro USB and Micro USB-C. One side of the cable plugs into the S-Mount-HV, the other side plugs into the tablet…it’s that easy.

WHAT’S INCLUDED?

Almost everything that you need to add one High Volt touch panel location.

  • S-Mount plate
  • S-Mount Power supply
  • S-Mount tablet adapter
  • Instruction Manual
  • Cables:
    • S-Mount to Apple 8-pin
    • S-Mount to Micro USB
    • S-Mount to Micro USB-C
  • Alcohol wipes
  • Mounting screws

Can I install it?

The installation of this product should be done by a qualified electrician, it requires knowledge of electrical connections, diagnosing the homes electric, and connecting 120v/240v electric wires, which can be deadly.

You can view the installation instructions here: S-Mount-HV Manual

HOW CAN I GET ONE?

Simple, you can buy one from our online store, Just click here.
